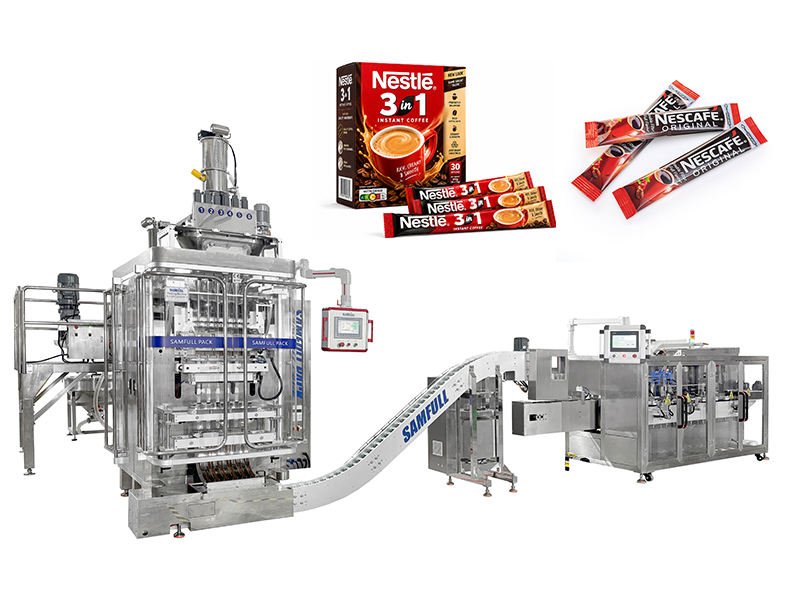

Coffee Stick Making Counting & Paper Box Carton Packing Line
Application:
The coffee stick box packing line is an automated assembly line designed to efficiently package coffee sticks into boxes. Coffee sticks are single-serving, pre-measured portions of coffee that are typically used for instant coffee or as a convenient option for individual servings.
Kindly reminder
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Videos:
The packing line consists of various machines and processes that work together to package the coffee sticks in an organized and systematic manner. Here's a general overview of how a coffee stick box packing line might operate:
1. Coffee Stick Filling: The process begins with the filling of coffee sticks. Coffee granules are measured and filled into individual stick-shaped packaging. This step ensures that each coffee stick contains the correct and consistent amount of coffee.
2. Coffee Stick Sealing: Once the coffee sticks are filled, the stick packaging is sealed to maintain freshness and prevent spillage.
3. Stick Sorting and Orientation: In this step, the filled and sealed coffee sticks are sorted and oriented correctly. This ensures that all the sticks are facing the same direction and are aligned properly for packaging.
4. Box Formation: Flat cardboard sheets are transformed into boxes by folding and gluing them together. The boxes are designed to hold a specific number of coffee sticks, such as 10 sticks per box.
5. Stick Insertion: The coffee sticks are then inserted into the formed boxes. This is typically done using a mechanical system that places the sticks precisely in their designated slots within the box.
6. Box Closing: Once all the coffee sticks are in their respective boxes, the boxes are sealed shut. The method of closing may vary; it could involve applying glue or adhesive tape to secure the box flaps.
Box Labeling: The boxes are labeled with product information, branding, and any necessary regulatory details.
7. Box Labeling: The boxes are labeled with product information, branding, and any necessary regulatory details.
Optional Configuration
1. Inspection & Quality Control Modules
1. Checkweigher (Weight Checking System)
2. Metal Detector
3. X-ray Inspection System (for high-end factories)
4. Automatic Reject System
2. Sorting & Conveying
1. Discharge Conveyor
2. Stick Pack / Sachet Collating System
3. High-speed Lane Diverter Conveyor
3. Counting & Grouping Systems
1. Automatic Counting Machine
2. Multilane Automatic Counting & Grouping Unit
3. Stacking System (for bundle packs)
4. Secondary Packaging Options
A. Cartoning
1. Automatic Carton Erector
2. Vertical / Horizontal Cartoning Machine
3. Multi-pack counting + automatic cartoning line
B. Bag-in-Bag Packaging
1. Automatic Bag-in-Bag Packaging System
2. Secondary VFFS / HFFS Machine
C. Jar / Can Filling
1. Stick Pack to Can/Bottle Filling Line
2. Automatic Capping and Labeling Systems
5. End-of-Line Packaging
1. Case Erector
2. Case Packer (Drop-type / Side-load)
3. Case Sealer
4. Robotic Palletizer
6. Labeling & Traceability Systems
1. Inkjet or Laser Coding System
2. Automatic Labeling Machine
7. Robotic Arm Applications (Pick-and-Place Robots)
1. Robotic Bag Sorting
2. Automatically picks and orients bags for downstream equipment.
3. Robotic Bag Loading
4. Loads single bags or grouped bags into:
Cartons
Trays
Display boxes
Buckets/cans
5. Robotic Grouping System
High-speed grouping of pouches/bags based on preset patterns.
6. Robotic Feeding to Case Packer
Ensures continuous feeding without manual intervention.
8. Front-end Feeding & Preparation System
Powder Mixing Machine
Screw Conveyor / Auger Feeder
Bucket Elevator / Z-type Conveyor
Vibratory Feeder
Vacuum feeder
